Mastering Matrices for 3D animation and Rigging

AKA- Constraints are out! The Matrix is in!

Jean-Paul Tossings

Founder and Technical Director at Polder Animation

Mastering Matrices for 3D animation

Matrices are a big part of my toolkit as Technical Director at ?@PolderAnimation? Since maya 2020 the matrix workflow for rigging has finally been updated to use them to their full potential. But to use them correctly, you have to understand how matrices work and what matrices are. So in this video I try to explain in a visual way how matrices are build up and how they work without showing to much raw math.

This video is focused on 3D animation and rigging, but the basic concepts will apply to any 3D animation or game development software.

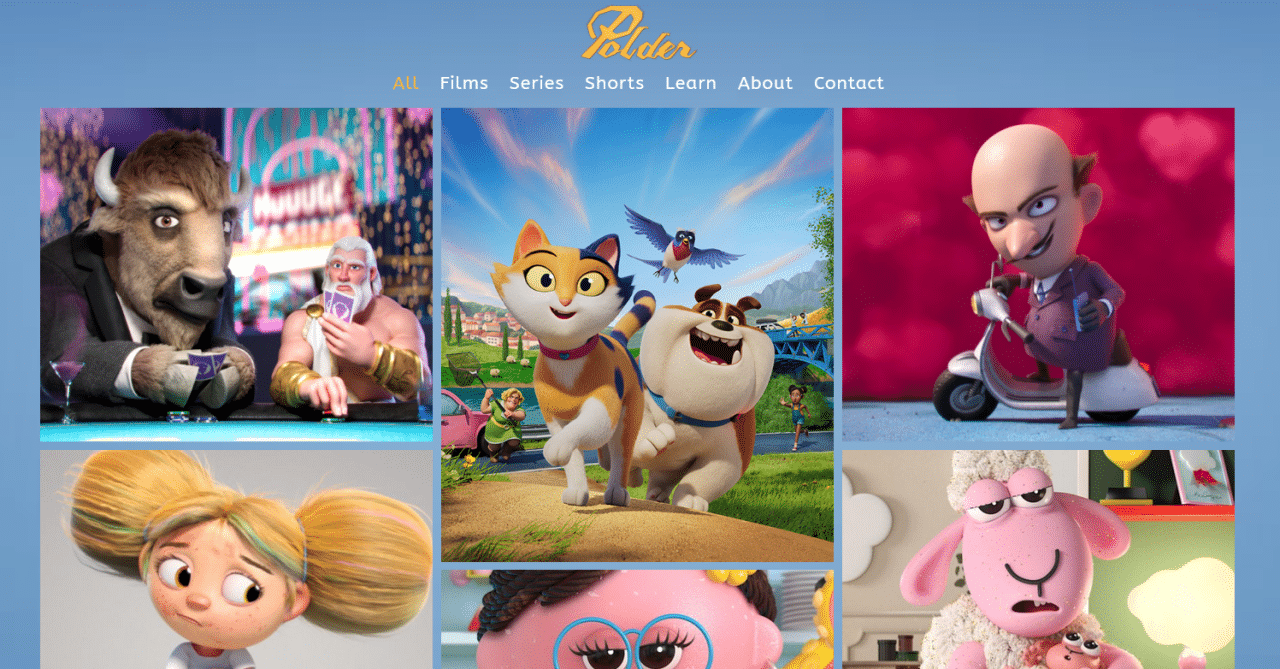

You can find my professional work here: Polder Animation: https://polderanimation.com
And you can follow we here as well: LinkedIn: / jean-paul-tossings-09a919328 00:00
Intro 01:25
The coordinate system 02:00
Point and vectors 02:57
Matrix 3×3 05:36
Translation 07:56
Matrix 4×4 09:38
Matrix multiplication 12:27
Transformation hierarchy 13:29
Inverse matrix 16:01
Composing a matrix 23:02 Wrapping up

Rigging with matrices

Part 01 – intro

The introduction to the rigging with matrices video series

The rigs that I build for animation production, for example the rigs for the feature film Miss Moxy are all build out of modules, which are self contained parts of the rig that only communicate with other parts via a few matrix connections through its input and output interface. A few guides determine the positioning and proportions of the module to dynamically adjust the rigs rest pose. This way all the characters, including humans, quadrupeds and birds could use the same building blocks, with only a few custom modules to add character type specific functionality.

So in this video series I want to put the knowledge about matrices to a practical use by building an arm rig module from scratch using matrices. Along the way a lot of maya matrix nodes will be explained. The series will include the following topics:

Fk control rig
IK control rig using maya ik solver
IK control rig using custom node based ik solver
node based soft or smooth IK to prevent ik popping
ik fk blending
manual arm segment scaling
control space switching
elbow locker
simple linear twist joints
bendy twist joints
squash and stretch thickness scaling
rig mirroring
publish script optimizations

Part 02 – FK

In this episode I build the initial arm module structure with a dynamic fk control rig using guides. Ik make use of the offsetParentMatrix plug on maya’s transform node to directly plug matrices into the controls. EDIT: I was just recording another video and I noticed that when the arm was straight the fk controls did not align correctly, because the aimMatrices for them where still set to use aim mode for the secondary alignment. I correct this in a later video (episode 8) when I come across this. If you want to fix this now, on the aimMatrix nodes for both the upper and lower arm, set the secondary mode to align, the secondary input axis to 0,1,0, the secondary target vector to 0,0,-1 and plug the worldMatrix[0] of the arm_L_upper_guide into the secondaryTargetMatrix. Sorry for this, but I’m (luckily) still human and make mistakes some times 😉

00:00 tranform node
03:38 offsetParentMatrix as buffer
06:57 use guides to drive buffer
10:42 flatten control hierarchy with multMatrix
17:07 flatten guide hierarchy
22:18 automatic guide orientation with aimMatrix
38:47 guided rotation plane orientation
53:51 create rig module structure
58:18 add and connect root module

Part 03 – IK

In part 3 I add the arm IK control setup using the same guides to keep the rig dynamically adjustable. For now I’m using the default Maya IK solver.

00:00 hand IK control
04:00 elbow IK control
13:43 add IK joints
18:13 add IK solver
30:39 add IK stretching

Part 04 – custom node based IK solver

In this episode I create a custom ik solver using maya default nodes. Using the Pythagorean Theorem and the Law of Cosines to solve the angles of the arm.

00:00 why use custom ik solver
02:04 law of cosines explained
03:49 solving the upper arm angle
10:52 solving the lower arm angle
15:08 align ik joints with worldspace arm rotation plane
20:18 replace upper and lower joints with worldspace matrices
38:38 fixing scale issue in ik solver
42:29 replace hand joint with worldspace matrix

Part 05 – soft IK

In this episode I build a node based setup for reducing the popping effect right before an ik solver reaches its max length. Also known as soft ik or smooth ik.

EDIT: The script I use for timing the evaluation duration can be optimized to skip the file save, making it a lot faster:

def getAverageEvaluationTime(n=1000, range_size=20):
    buffer_size = 100
    current_frame = int(mc.currentTime(q=True))
    mc.profiler( b=buffer_size )
    average_duration = 0
    for i in range(n):
        frame = current_frame + 1 + i%range_size
        mc.profiler( r=True )
        mc.profiler( s=True )
        mc.currentTime( frame )
        mc.profiler( s=False )
        event_count = mc.profiler( q=True, eventCount=True )
        for event_id in range(event_count):
            if mc.profiler( q=True, eventName=True, eventIndex=event_id ) == "EvaluationGraphExecution":
                duration = mc.profiler( q=True, eventDuration=True, eventIndex=event_id )
                average_duration += duration
                break
    average_duration /= n
    print(f'{average_duration=} micro seconds\nPure fps={1000000/average_duration}')
    mc.currentTime(current_frame)

getAverageEvaluationTime()

00:00 explaining soft ik workflow
18:28 construct the upper heigth
30:04 construct the upper target heigth
44:09 construct the upper scale value
46:34 construct the lower scale value
56:52 apply soft ik to upper and lower segments
01:03:08 fixing NaN value error
01:07:24 testing different blend and heigth curves
01:20:36 profiling soft ik performance
01:30:43 explaining soft ik with lower segment scale only

Part 06 – custom node based IK solver optimization

A small optimization that could be made to the node based ik solver shat we build, so this is a small update to that video.

Part 07 – Bifrost custom IK solver

In this episode I show the same node based IK solver as in episode 4, but now inside a Bifrost graph.

I will not show the creation itself, but the result as the creation would be a repetition of episode 4.
A small nuance to the performance comparison: it does depend on the system that you run, I tested it on 3 systems.

Intel i9 7960X (16 core) (2017)

Maya rp ik-solver 796 ?s
Custom ik-solver 928 ?s
Bifrost custom ik-solver 766 ?s

AMD Ryzen9 5950X (16 core) (2020)

Maya rp ik-solver 400 ?s
Custom ik-solver 390 ?s
Bifrost custom ik-solver 350 ?s

AMD Ryzen9 9950X (16 core)(2024)

Maya rp ik-solver 302 ?s
Custom ik-solver 294 ?s
Bifrost custom ik-solver 297 ?s

So the difference becomes close to negligible the faster the CPU becomes.

Part 08 – IK/FK blending

In this episode I go over how to set up the blending between the IK and FK matrices to produce the final arm segment matrices.

00:00 fix fk control orientation issue
03:32 add settings control with switch attribute
07:15 blending in worldSpace with issue
14:34 blending in localSpace
23:57 cleaning up
26:49 add skin joint hierarchy
29:53 flatten skin joint hierarchy

Part 09 – segment length scaling

In this episode I add manual length scaling capability to the upper and lower arm segments in the ik and fk rig. As well fix the issue with the global rig scale.

00:00 add manual segment scaling to ik solver
06:45 add soft ik enabler
11:03 add manual segment scaling to fk
29:19 cleanig up
30:14 fixing global scale issue

Part 10 – space switching

In this episode space switching capability is added to the IK and FK controls. And a barebone spine control module (hip, chest and COM controls only) and simple but effective clavicle module are added as well to have something to space-switch to.

00:00:00 introduction
00:00:47 simple spine module construction
00:10:09 clavicle module construction
00:32:20 add length lock to clavicle
00:40:05 fix double global scaling on clavicle
00:53:49 hand IK space switching
01:19:30 elbow IK space switching
01:36:15 FK space switching

Part 11 – driving shape data

In this episode we look at how to drive NURBS curves, surfaces, meshes and lattice deformers without using clusters. A lot of riggers still use clusters to drive the cv’s or vertices, but in a lot of cases this is not necessary an we can drive the cv positions with a simple connection.

00:00 drive nurbs curve cv’s
05:25 drive nurbs surface cv’s
10:13 drive mesh vertices
13:56 drive lattice FFD cv’s

Part 12 – IK elbow locker

In this episode we add an extra control that can be used to lock the elbow to a fixed position in space. This can be handy when a character rests the elbows on a table or on its knee’s for example.

00:00 add elbow lock control
06:34 add space switches to elbow lock control
16:56 create poleVector switch for ik solver
29:45 calculate lock upper and lower ik segment lengths 36:36 switch segments lengths
42:50 add helper line as visual aid
48:19 optional extra spaces

Part 13 – control space scaling

In this episode we add the ability to scale the parent spaces of controls. If a control has multiple spaces due to a space switch, every parent space has potentially a different world scale, so we filter the scaling matrices so that only the main scale remains.

00:00:00 fix segment scaling of clavicle
00:05:00 fix segment scaling of arm the wrong way
00:07:48 arm clavicle space scaling
00:21:43 arm base offset scaling
00:38:52 arm chest space scaling
00:44:18 arm hip space scaling
00:47:20 arm world space scaling
01:02:27 fixing reconnection issues of blendMatrix nodes
01:10:34 elbow locker master space fix

Additional Math resources

And for our most advanced rig training on building high performance rigs that fully take advantage over the Maya Parallel and GPU based rigging check out Optimizing Rigs for Parallel Evaluation, success story “Goro”
